Computer Shuttle Quilting Machine
Machine Feature:
1. Adjusted speed by computer and the speed can reach 1000r/min
2. Full thread breaks detection for threads
3. Saddling rack and roller are driven by servo equipment, Principal axis adopt the frequency conversion device.
4. Saddling rack adopt high rigid design of sewing embroidering machine ,Adopt separation structure of convey cloth rack and moving saddling rack, effectively reduce the load and jitter of saddling rack.
5. Adopt double clutch device, effectively solve the synchronization problems of (Front and back) rollers.
6. Adopt high precise and high rigidity import screw rod
7. 360° random quilting and limitless multi-span and independent quilting.
8. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when thread is broken.
9. Infrared sensor makes the operation more secure.
10. Stable operation, low noise, high precision, few break line, easy operating.
11．The needle bar running adopt aluminum alloy needle bar frame structure, don’t need to add extra lube, strong and durable.
Machine Specification:
| Model | YGB80-2-3(S/B) | YGB80-3-4/4.5/5/6(S/B) |
| Dimension(L*W*H) | 4400*1200*1800(mm) | 4400*1200*1800(mm) |
| Quilting Width | 2000mm | 2000mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3” inch | 3”+1”/1.5”/2”/3” inch |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 203.2mm | 203.2mm |
| Thickness of quilting | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm |
| Speed of operation(m/hour) | 20-160(m/hour) | 20-160(m/hour) |
| Model of needle | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1000(RPM) | 100-1000(RPM) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P |
| Total power | 3.5KW | 3.5KW |
| Gross weight | 4300kg | 4300kg |
*Customized model are available to meet client’s various needs.

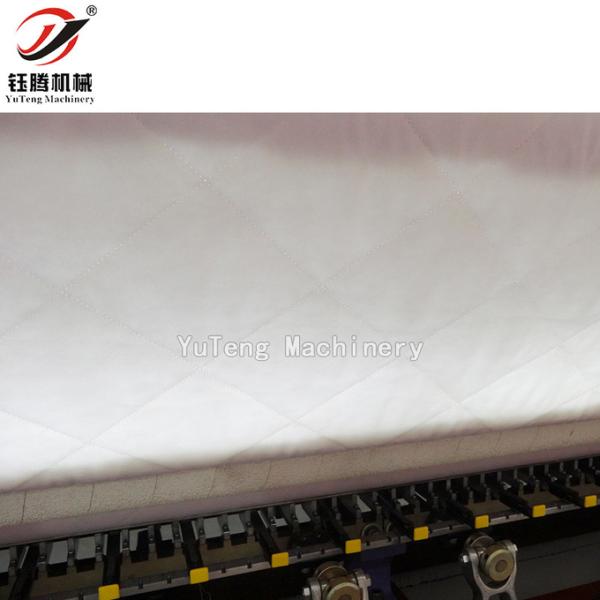

Product Display:
Company Profile:
DongGuan YuTeng Machinery Technology Co., Ltd. is a modernized,high-tech enterprise specializing in High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machine,Computerized Quilting and Embroidery Machine,Computerized Chain Stitch Multi-Needle Quilting Machine,High-speed computerized double-row quilting and embroidery Machine, Computerized Panel Cutter Machine, Roller Machine. The products are widely used in garment, bedding,handbags and household ornament etc. With strong R&D both in machinery and software, our company focuses on the profound development in production, sales, and service.
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Service:
Pre-Sales Service:
1.Inquiry and consulting support.
2.View our Factory.
After-Sales Service:
1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3.Warranty: 1 year
Enterprise Certificate:
FAQ:
Q1: Warranty,Quality and Service
A:We provide one year warranty;And we provide online guidance within 12 hours,lifetime service
Q2: Experience,Professional and Engineer
A:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best
guide before buying and after buying
Q3: Advantage and Why choose us
A:We have are rich experience, professional team, never absent after-sales service
Welcome to contact with us,for more information of quilting machine.
