| Model | YGB96-2-3 | YGB96-3-5 | YGB96-3-6 |
| Dimension(L*W*H) | 4900*1200*1800(mm) | 4900*1200*1800(mm) | 4900*1200*1800(mm) |
| Quilting Width | 2450mm | 2450mm | 2450mm |
| Needle rows | 2 | 3 | 3 |
| Space between needle rows | 3" | 3"+2" | 3"+3" |
| Space between needle | 25.4mm | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm | 304.8mm |
| Thickness of quilting | 25mm | 25mm | 25mm |
| Stitch length | 2-6mm | 2-6mm | 2-6mm |
| Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
| Model of needle | 16#,19# | 16#,19# | 16#,19# |
| Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) | 300-800(r/min) |
| Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P |
| Total power | 5.5KW | 5.5KW | 5.5KW |
| Gross weight | 4500kg | 4500kg | 4500kg |
Product main features :
1,Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Machine details :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can choose this device .(Protected patents in the machine appearance &structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

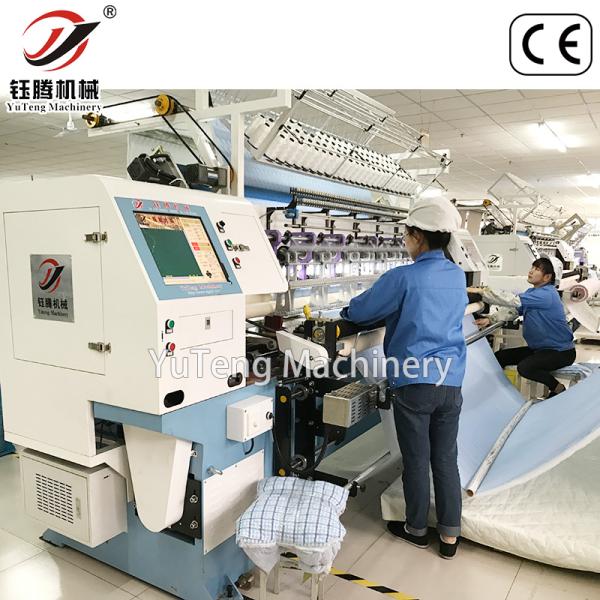

Quilting machine application scene :
Certificate :
Company pictures :
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
6.Customized Model are available to meet client's various needs.
