Computerized Multi-Needel Shuttle (Lock Stitch) Quilting Machine,Multi Needle Sewing Machine For Garment
Description:
The Computerised Shuttle Quilting Machine with Lock Stitch is specifically designed for garment manufacturing. It is a technologically advanced quilting machine that offers precise and efficient stitching for a wide range of garments. This machine utilizes a lock stitch mechanism, ensuring secure and durable stitching results.
♦ Product main features :
1, Computerized speed governing , max.800r/min.
2, Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3, Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4, Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5, Dual clutch device, to solve the synchronization problem of rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
♦ Technical parameters :
| Model | YGC76-2-3 | YGC76-3-5 |
| Dimension(L*W*H) | 4300*1200*1800(mm) | 4300*1200*1800(mm) |
| Quilting Width | 2000mm | 2000mm |
| Needle rows | 2 | 3 |
| Space between needle rows | 3" inch | 3"+2" inch |
| Space between needle | 25.4mm | 25.4mm |
| X-axis movement displacement | 254mm | 304.8mm |
| Thickness of quilting | ≤25mm | ≤25mm |
| Stitch length | 2-6mm | 2-6mm |
| Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
| Model of needle | 16#,19# | 16#,19# |
| Quilting Speed(r/min) | 300-800(RPM) | 300-800(RPM) |
| Voltage(AC) | 380V/220V/50HZ | 380/220V/50HZ |
| Total power | 3.5KW | 3.5KW |
| Gross weight | 3500kg | 3500kg |
♦ Machine details :
♦ Purpose :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.

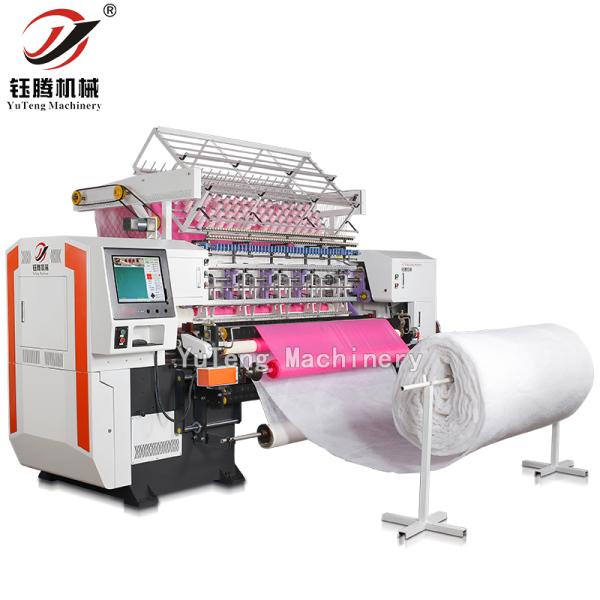

♦ Quilting Machine Pictures :
♦ Certificate :
♦ Company pictures :
♦Our service :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
